10MC Series Bellows and Expansion Joints

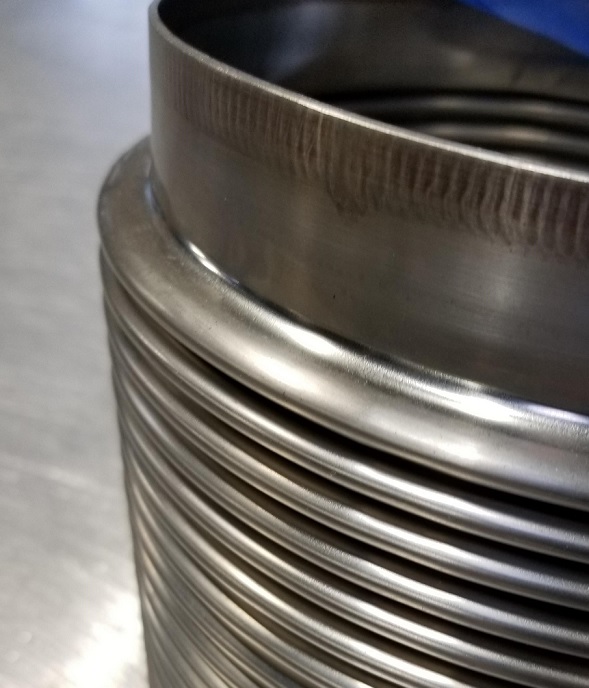

The 10MC is Single Ply low pressure exhaust bellows rated to accept the high stress demands of frequent engine start/stop and/or high vibration applications. It is movement rated at 10,000+ cycles and is available in short or long series. It supports a variety of end fittings including: fixed flange, schedule standard weld ends, fixed by floating flange, and many other custom configurations.  Available as capsule only, or fully welded expansion joint.

Piping system design and layout assistance available upon request. Call now!

  • Generator Sets
  • Marine Propulsion
  • OEM Engines
  • Gas Turbine Exhaust
  • Power Units
  • Auxiliary System Piping
Markets Served:
  • Marine
  • Construction
  • Oil Platform
  • Power Generation
  • Railroad
  • Ship Building


Features & Benefits

  • Single-Ply construction
  • Easier Movement
  • Greater Vibration Absorption
  • Shorter OAL
  • Internal Stainless Steel Liner (Optional)
  • Fixed by Floating Flange (Optional)
  • Long Life – 10,000 plus cycles
  • Less force to actuate
  • Reduces system stress & noise
  • Saves space, reduces weight & eases installation
  • Temperature reduction on the bellows for longer product life
  • Quick bolt hole alignment


Brochure & Additional Info

View Brochure

View Flange Engineering Data Sheet

View Exhaust End Configuration Data Sheet
