Linear Transducer Switch | Aerospace Components

Description

Guardian’s linear transducer switch offers high performance in a versatile compact design for use in a variety of applications.

This flexible transducer offers infinite resolution to control x-y axis tracking. The compact design of this switch makes it ideal for use in multi-function displays.

It can also be grip or panel-mounted for maximum versatility.

Features

Compact design

High reliability

Infinite resolution

Easy integration with multi-function display

Specification

Ratings
Excitation voltage 10VDC (+/-VDC bipolar)

Operating Force

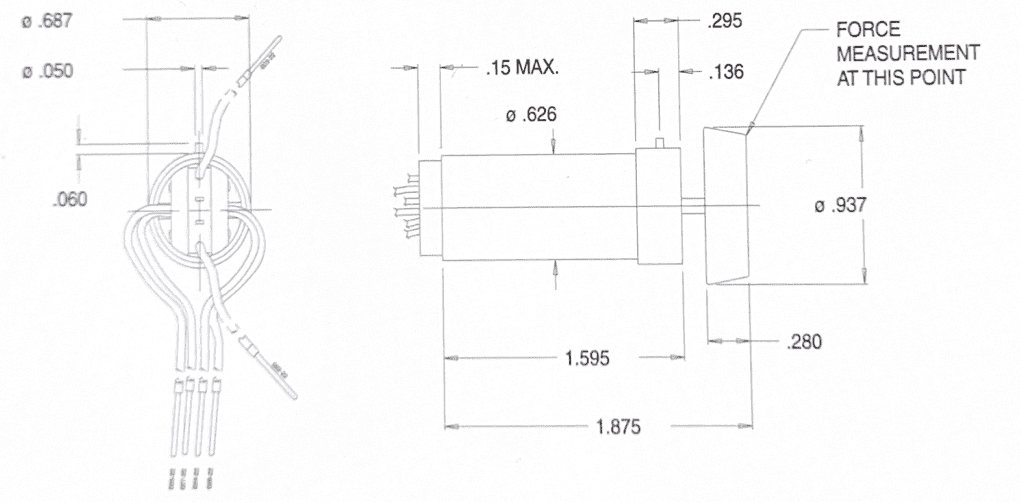

3.0 lbs @ Point indicated

Operating Temperature
-54C to 85C

Mounting
Panel or Handle

Terminal
Wire leads
